Automate daily time-lapses

Looking back at picture of how the garden evolved throughout the spring and summer, I kept on thinking that a time-lapse of this would look incredible. I once did a time-lapse of the outside and you have to admit that looking at the clouds at that speed really makes a great sight and this is how the idea came to life.

So although the one about the garden is still in the works, following are instructions on how to automate daily time-lapses of your outside view.

Also we will be using a raspberry pi, IP camera and docker.

I assume the raspberry pi to be already set up (nothing special, just accessible via ssh or that you can use the terminal).

if you have a Pi Camera, feel free to use the following to take your pictures doc for raspistill.

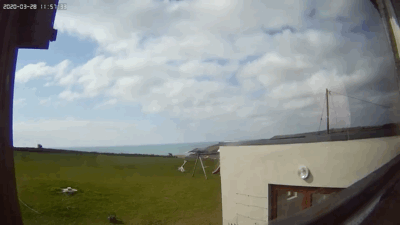

time-lapse

Step2.1 - Install Docker on the Raspberry pi

Might be able to use this now: https://docs.microsoft.com/en-gb/azure/iot-edge/how-to-install-iot-edge-linux#install-the-container-runtime

curl https://packages.microsoft.com/config/debian/stretch/multiarch/prod.list > ./microsoft-prod.list
sudo cp ./microsoft-prod.list /etc/apt/sources.list.d/
curl https://packages.microsoft.com/keys/microsoft.asc | gpg --dearmor > microsoft.gpg
sudo cp ./microsoft.gpg /etc/apt/trusted.gpg.d/
sudo apt-get update

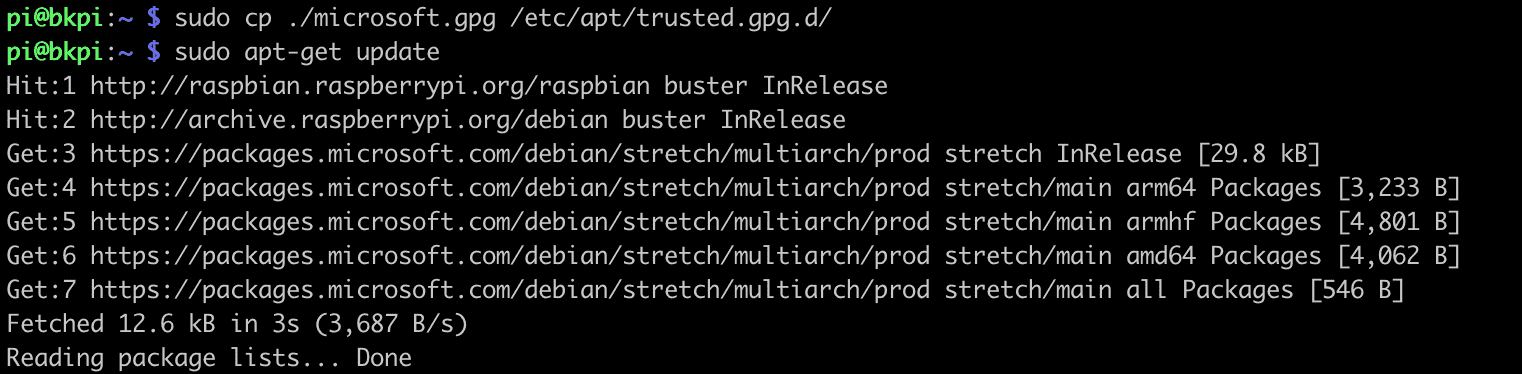

successful apt get output

sudo apt-get install moby-engine
sudo apt-get install moby-cli

Step 2.2 - Create folder structure and set up the cron

mkdir ~/timelapse
cd ~/timelapse
mkdir -p ~/timelapse/output/today

Let's create the script file to take that picture

nano ~/timelapse/takephoto.sh

Paste the following

#!/bin/sh
today=`date '+%Y_%m_%d_%H%M_%S'`;
filename="/tmp/ffmpeg/picture_$today.jpg"

sudo docker run -v=/home/pi/timelapse/output/today:/tmp/ffmpeg —rm mhiro2/rpi-ffmpeg:3.3 -rtsp_transport tcp -i "rtsp://admin:<yourpassword>@<your iP of type 192.168.0.x>:554" -vcodec mjpeg -frames 1 $filename

Try it

~/timelapse/takephoto.sh

To test, check the output using

ls ~/timelapse/output/today

If you have an issue with permissions, I used the following but that may be too much actually : sudo chmod a+rwx ~/timelapse/takephoto.sh

If you can see a file, you can also download it to check what it looks like

scp [-P <port number>] pi@192.168.x.x:/home/pi/timelapse/output/taday/* .

Set up the crontab

crontab -e

(I chose 1 for nano if you are asked to confirm because it is the first time you set up then cron)

On new line at the end, add:

* 07-18 * * * /home/pi/timelapse/takephoto.sh

... where we basically ask for that job to take a photo every minutes between 7am and 6.59pm.

You can then check a few pictures were taken using again the command

ls ~/timelapse/output/today

Making the time-lapse

nano ~/timelapse/move_and_convert_to_timelapse.sh
#!/bin/sh
today=`date '+%Y_%m_%d_%H%M_%S'`;
foldername=`date '+%Y_%m_%d'`;

filename="/tmp/ffmpeg/timelapse_$foldername.mp4"
targetFolder="/home/pi/timelapse/output/$foldername"

#Ensure the folder exists
mkdir -p $targetFolder

#Move today's pictures into a different folder
mv -f /home/pi/timelapse/output/today/* $targetFolder

#Rename all pictures
aa=0;for i in `ls $targetFolder/*`; do mv $i $targetFolder/`printf "%04d" $aa`.jpg; aa=$(($aa+1));done

#Create the time-lapse from the pictures
sudo docker run -v=$targetFolder:/tmp/ffmpeg mhiro2/rpi-ffmpeg:3.3 -r 30 -i /tmp/ffmpeg/%04d.jpg -r 10 -vcodec libx264 -vf scale=1280:720
